High-Speed Hole-Punching Units

With our electromagnetic punching units you can punch holes by reaching speeds up to 200 meters per minute in materials such as PE, BOPP, PP, paper, and many more.

Special features

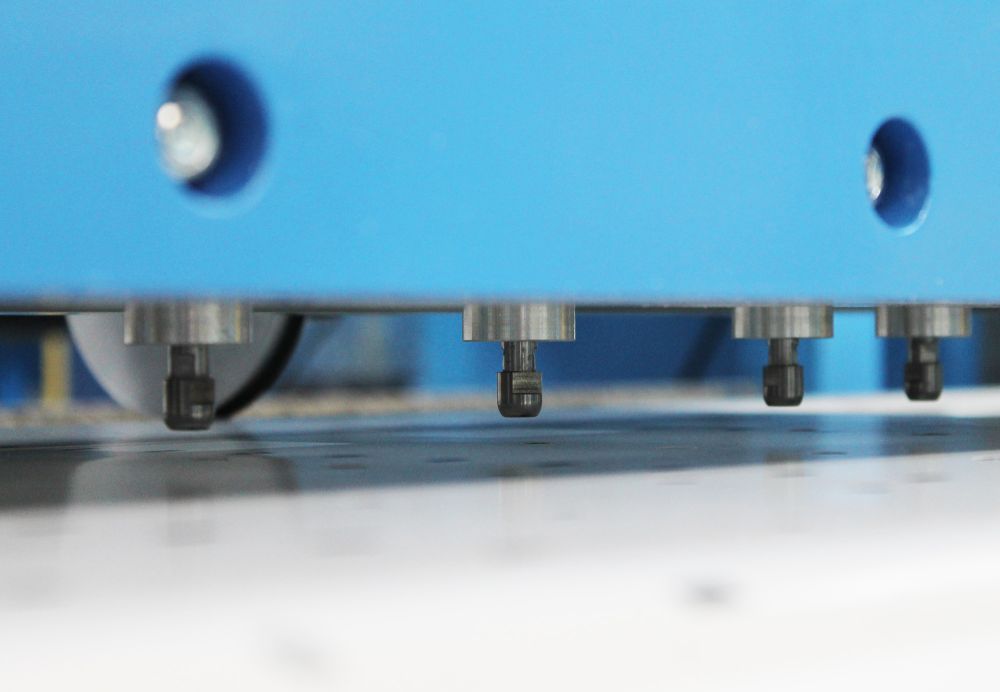

The punching tools are actuated by special high-performance magnets. The stations can be offered in various widths (40 mm - 120 mm). Moreover, by connecting in series up to 4 punching bars (electronically synchronized) the lateral punching distances can be halved.

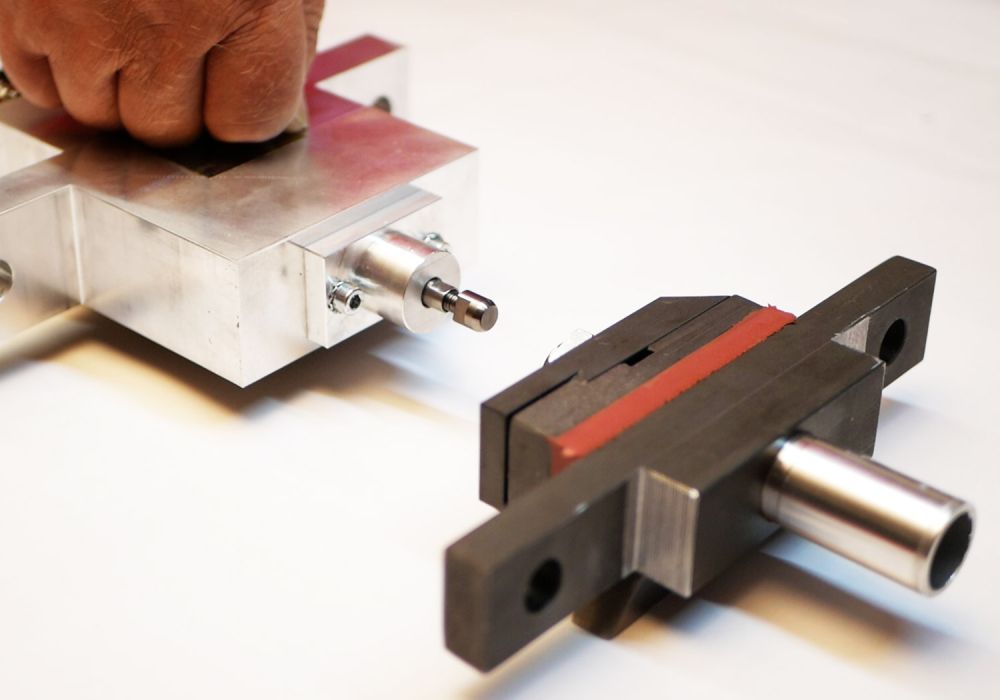

Thanks to a unique quick-change system, a wide variety of punches and height-adjustable dies can be exchanged at the punching stations easily.

A careful choice of materials also ensures a very long service life of the matrices and extremely low material wear.


Technical details

  • Web speed: up to 200 m/min
  • Up to 80 strokes(punches)/sec
  • Punching pattern positioning via print marks (photocell)
  • Programmable logical control with high-quality touch screen
  • Matrix control (prevention of holes in the print image)
  • Punching strengths continuously adjustable (depending on material)
  • 16 punch programme memory (to be called from table
  • Print mark hiding to suppress interference marks

Optimize your existing machines

Did you know? The components of our electromagnetic high-speed units are compatible with the most popular electromagnetic units from other manufacturers on the market.

Of course, we are happy to advise you in upgrading of your existing machines. For you, this means an increase on your production volume of up to 100% with low investment costs.

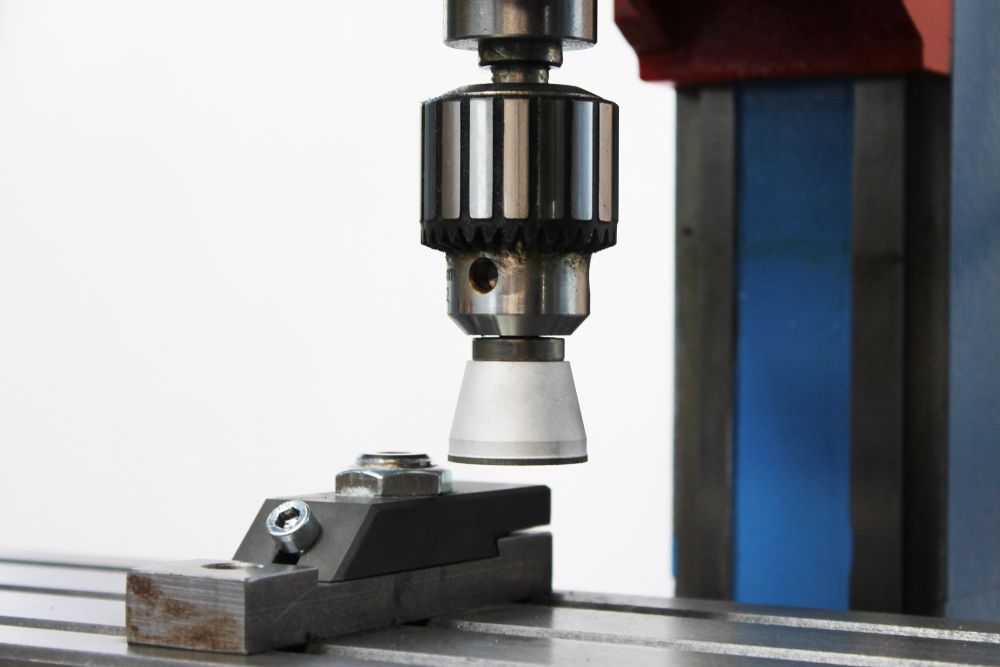

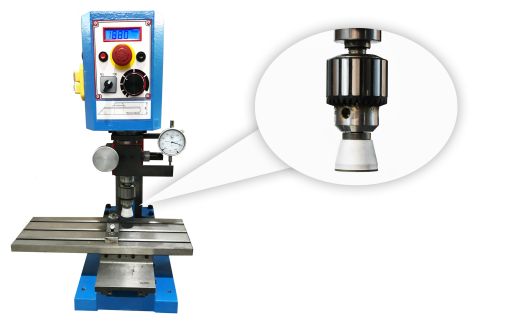

Grinding machine

A precise grinding machine for the matrices of our punches.

  • Electrically movable grinding table
  • Several tools can be mounted
  • Low wear of the grinding head
  • Doubles lifetime of the matrices
